Smart Active Balancer
NEEY-24S15A · also sold as EK-24S15EB
The biggest balancer we build: 15 A of app-settable current, a 40S cascade example in the manual, and an over-balancing guard that halves the current automatically when the pack is already close to balanced.

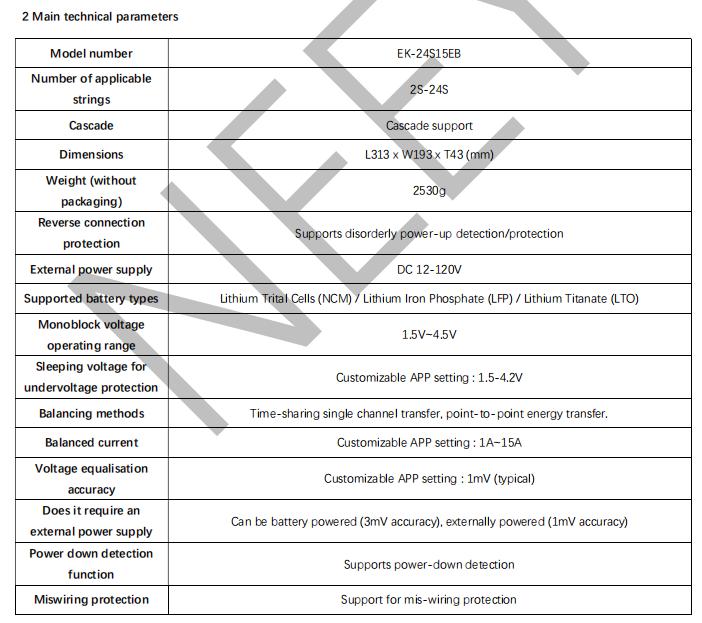

| Model | NEEY-24S15A (EK-24S15EB) |
|---|---|
| Cell count by chemistry | Li-ion 3S–24S · LiFePO4 4S–24S · LTO 7S–24S · sodium-ion 7S–24S |
| Cascading | Supported — see cascade wiring diagrams |
| Balance current | Adjustable in app: 1 A – 15 A |
| Balance method | Time-sharing single-channel, point-to-point energy transfer |
| Voltage accuracy | ±3 mV battery powered · ±1 mV external powered |
| Cell voltage range | 1.5 V – 4.5 V |
| Battery types | NCM (ternary) / LiFePO4 / LTO / sodium-ion |
| Power input | DC 12 V – 120 V, or battery powered |
| Undervoltage sleep | Adjustable in app: 1.5 V – 4.2 V |
| Communications | Bluetooth 5.x (Android / iOS / HarmonyOS) |
| TTL bus | Yes — 115200 baud, 8N1, master–slave protocol |
| Protections | Mis-wiring protection, ribbon power-down detection, disorderly power-on detection |
| Fault alarm | Buzzer, configurable in app |
| Indicator LEDs | Green = power · Blue = Bluetooth · Yellow = balancing · Red = fault |
| Power consumption | ≈1 W balancing, ≈0.5 W idle |

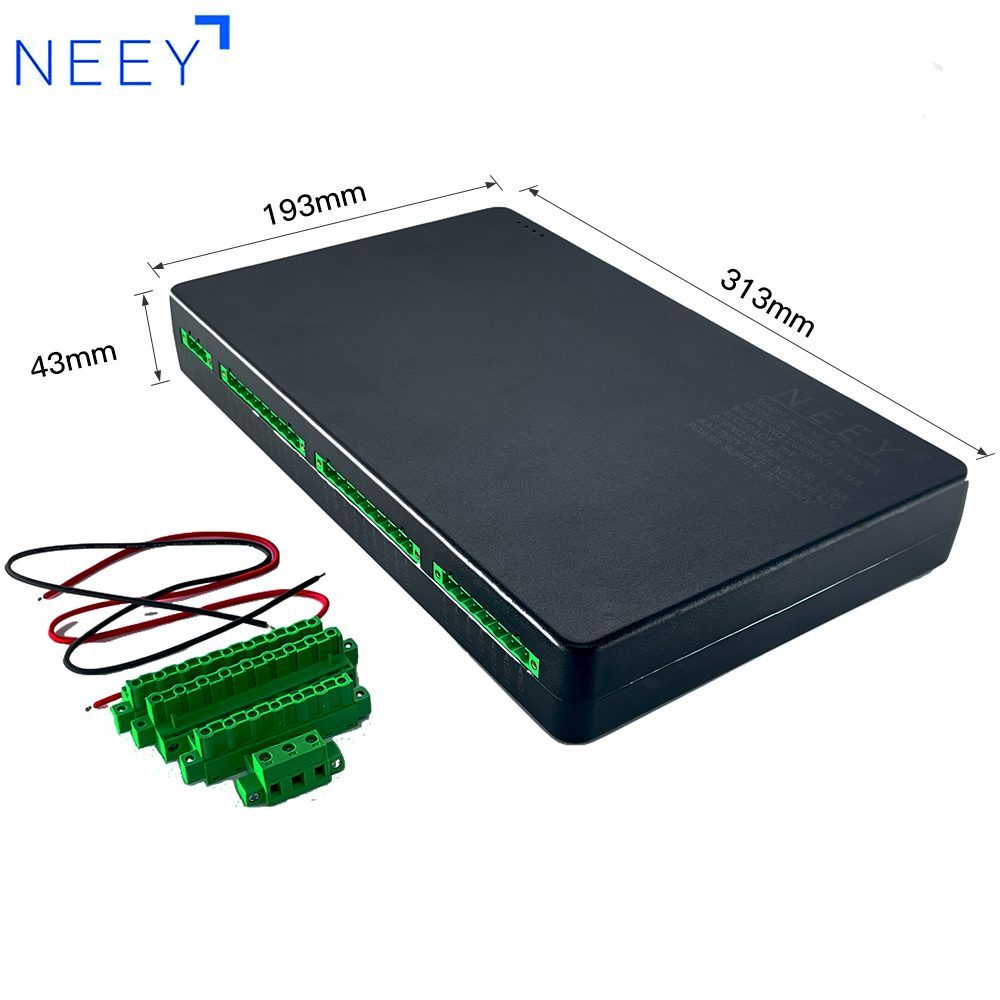

| Dimensions | L313 × W193 × T43 mm |
| Weight | 2530 g |
| PCB / finish | FR-4, lead-free HASL |
| Operating temperature | -20 °C to +55 °C |
| Warranty | 1 year |
| Connectors | P1 power IN-/IN+ · P2 B0–B8 · P3 B9–B17 · P4 B18–B24 (7.62 mm screw) |

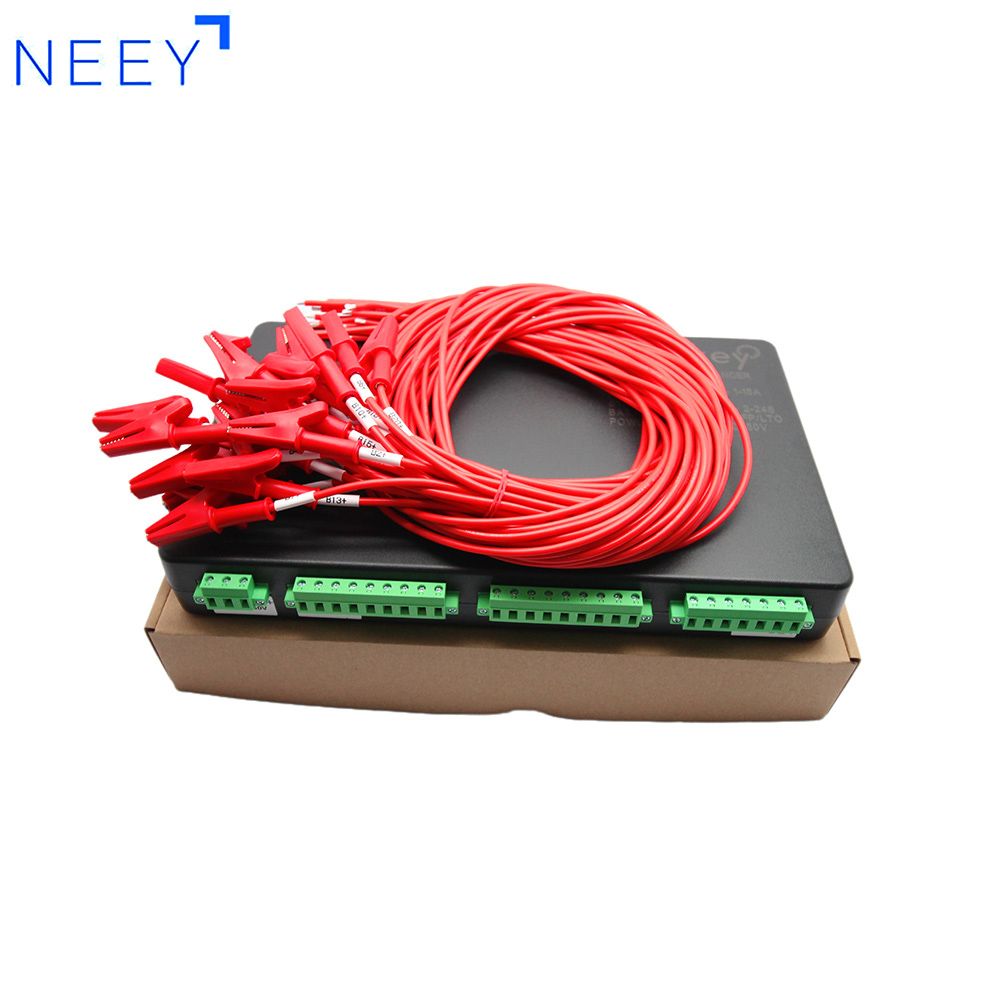

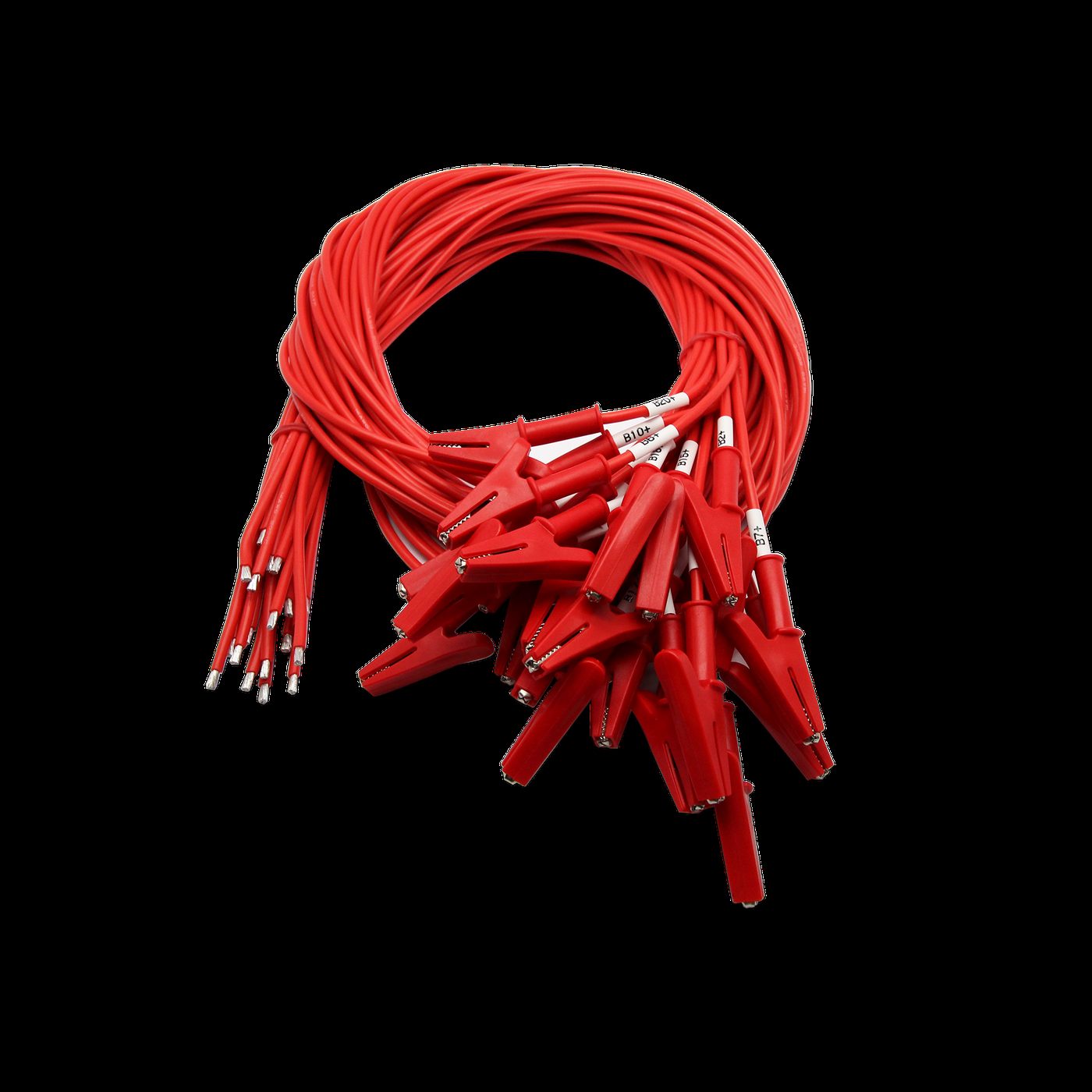

| In the box | 3-pin, 7-pin and 2× 9-pin 7.62 mm terminals · 18 V or 24 V DC adapter · 25× 1 m 16 AWG clip leads |
| Single transfer volume | balance current ÷ 3600 × cycle time (2–5 s) — 0.008 Ah – 0.021 Ah at 15 A |
Need a different connector, lead length or silkscreen? Custom configurations are standard — send us your pack details.
