Smart Active Balancer
NEEY-24S10A · also sold as EK-24S10EB

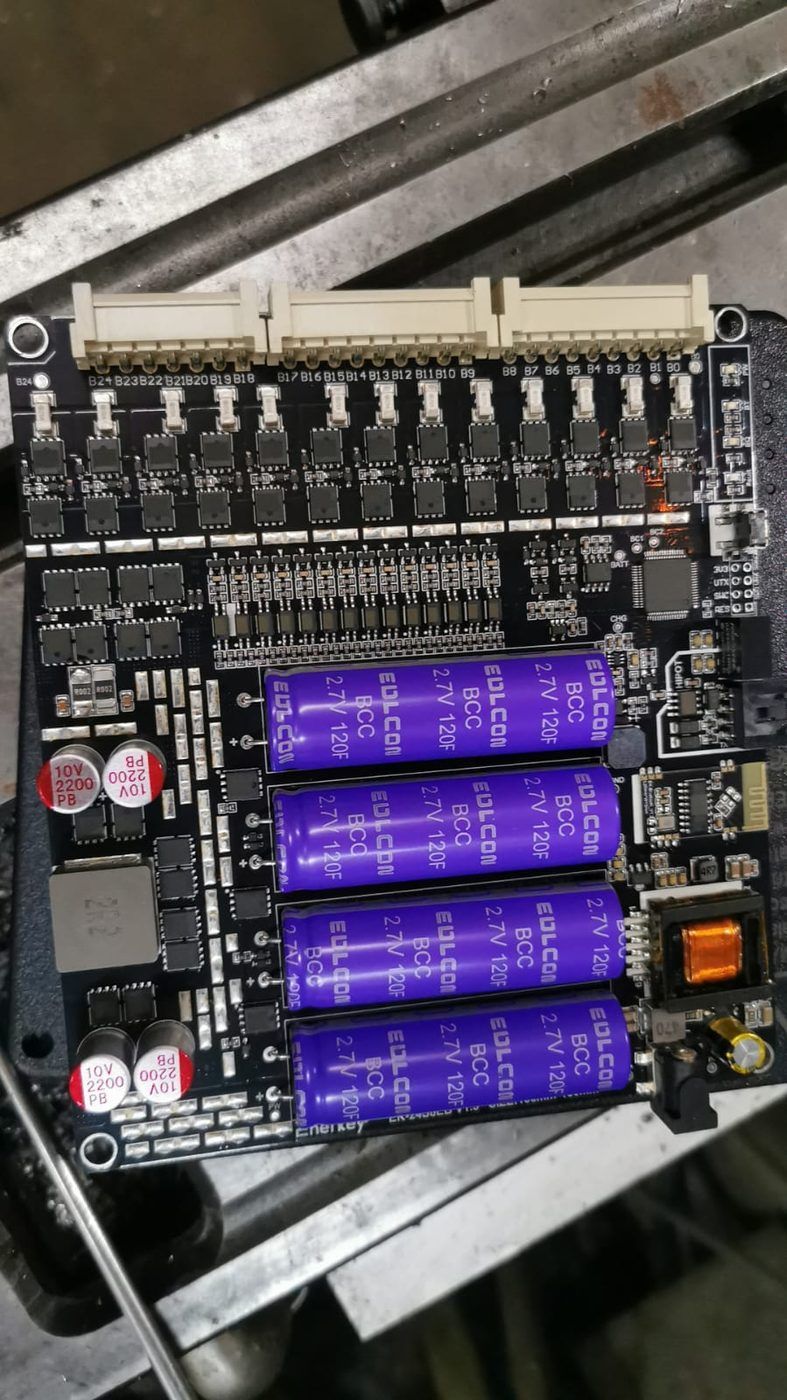

The 24S8A’s feature set at 10 A, in a slightly larger 166 × 157 mm board with heavier copper. Suited to 50 Ah–200 Ah traction and storage packs.
| Model | NEEY-24S10A (EK-24S10EB) |
|---|---|
| Cell count by chemistry | Li-ion 3S–24S · LiFePO4 4S–24S · LTO 7S–24S · sodium-ion 7S–24S |
| Cell count by supply | 2S–24S external powered · 4S–24S battery powered |
| Cascading | Supported — see cascade wiring diagrams |
| Balance current | Adjustable in app: 1 A – 10 A |
| Balance method | Time-sharing single-channel, point-to-point energy transfer |
| Voltage accuracy | ±3 mV battery powered · ±1 mV external powered |
| Cell voltage range | 1.5 V – 4.5 V |
| Battery types | NCM (ternary) / LiFePO4 / LTO / sodium-ion |
| Power input | DC 12 V – 100 V, or battery powered |
| Undervoltage sleep | Adjustable in app: 1.5 V – 4.2 V |
| Communications | Bluetooth 5.x (Android / iOS / HarmonyOS) |
| TTL bus | Yes — 115200 baud, 8N1, master–slave protocol |
| Protections | Mis-wiring protection, ribbon power-down detection, disorderly power-on detection |
| Fault alarm | Buzzer, configurable in app |
| Indicator LEDs | Green = power · Blue = Bluetooth · Yellow = balancing · Red = fault |
| Power consumption | ≈1 W balancing, ≈0.5 W idle |
| Dimensions | L166 × W157 × T26 mm |
| Weight | 810 g (packed) |
| PCB / finish | FR-4, lead-free HASL |
| Operating temperature | -20 °C to +55 °C |
| Warranty | 1 year |
Need a different connector, lead length or silkscreen? Custom configurations are standard — send us your pack details.
