NEEY EV500 DC Contactor
EV500 · also sold as formerly EV4025 series
250 A switching with 500 A long-term carrying at 85 °C, a built-in coil economizer and optional auxiliary contacts for main-loop monitoring.
Price on request
Volume and sample pricing on request
Ordering: Ordering code: EV500 · A/H (aux contact) · 01 (NC aux). Coil voltage, lead length and installation can be customised.
- 500 A @ 85 °C long-term current carrying capacity
- Rated 12 – 1000 Vdc, 250 A contact switching capability
- Maximum 200 A disconnection capacity
- Built-in coil economizer — holds at low power after pickup
- Optional auxiliary contacts for main-contact status monitoring

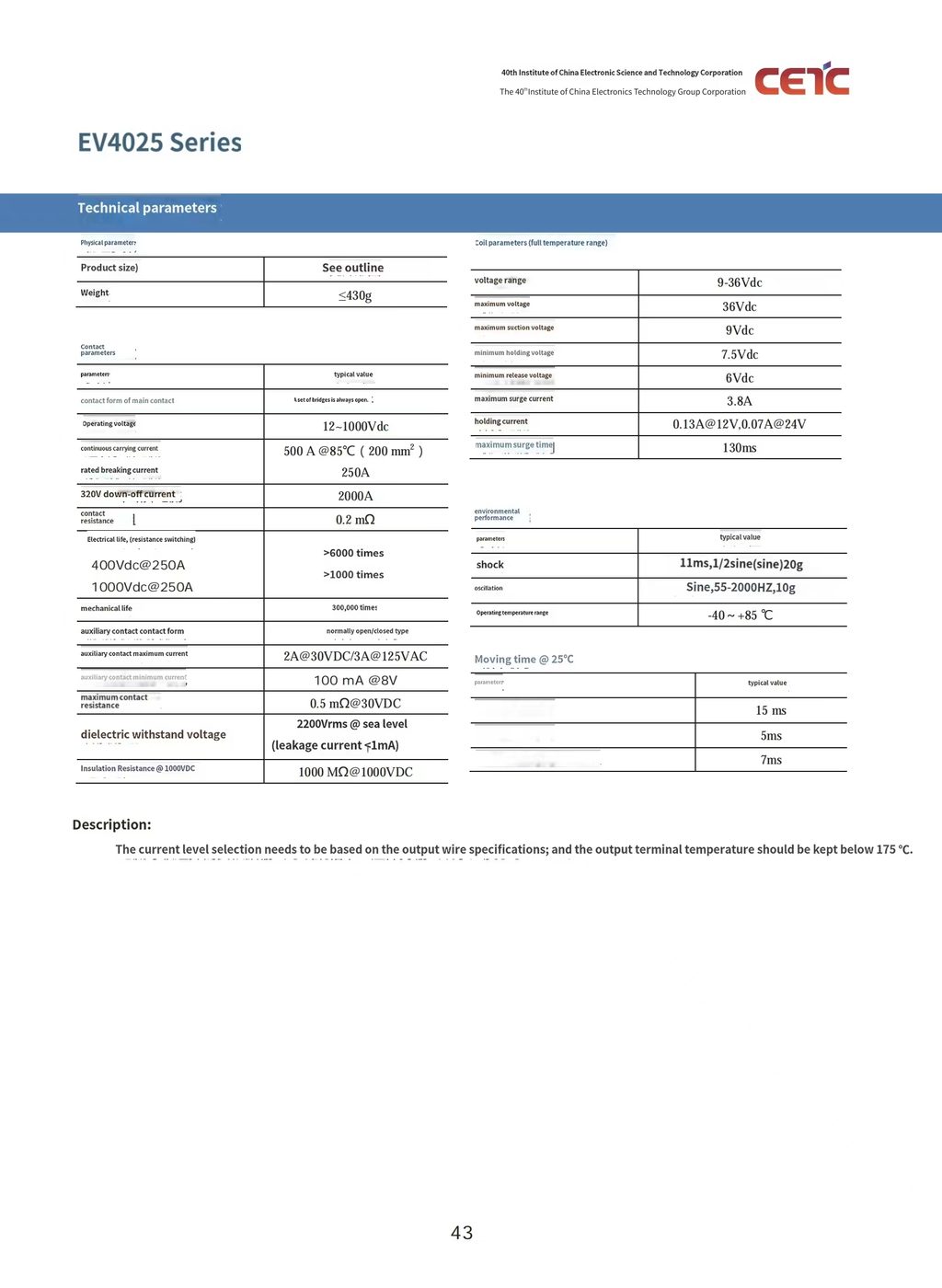

EV500 specifications
| Model | EV500 (EV4025) |
|---|---|
| Rated voltage | 12 V – 1000 Vdc |
| Contact switching current | 250 A |
| Long-term carrying capacity | 500 A @ 85 °C |
| Maximum disconnection capacity | 200 A |
| Sealing | Epoxy resin — coil and contacts protected from oxidation and contamination |
| Coil | Built-in economizer · 9 V – 36 Vdc |
| Auxiliary contact | A = none · H = with aux · 01 = NC, blank = NO |

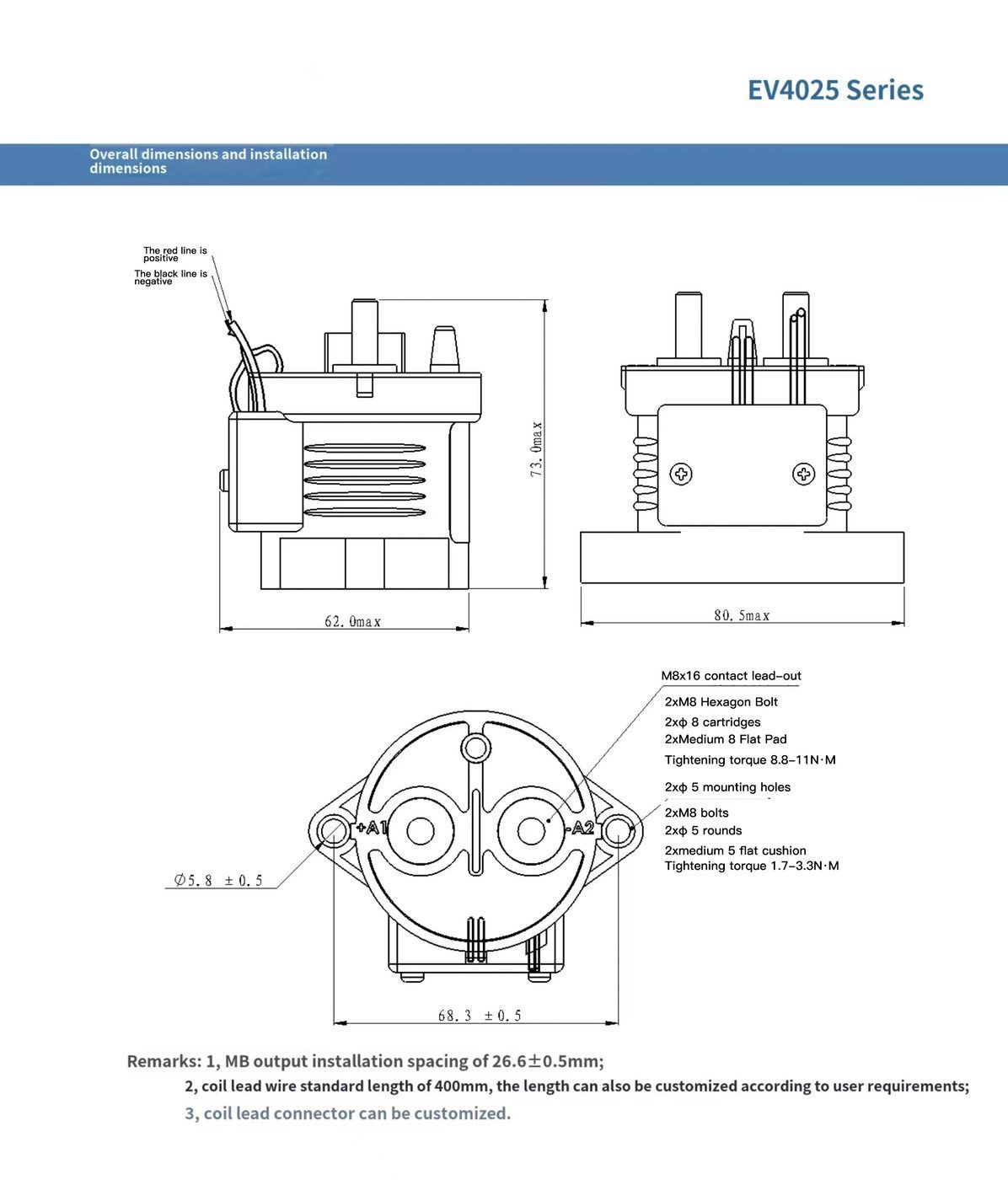

| Contact terminal | M8 × 16 lead-out · 2× M8 hex bolt · torque 8.8 – 11 N·m |
| Mounting | 2× Ø5 holes, 2× M8 bolts · torque 1.7 – 3.3 N·m |
| Dimensions | 62.0 max × 80.5 max × 73.0 max mm |
| Coil lead length | Standard 400 mm, customisable; connector customisable |
| Warranty | 1 year |
Included in the box
- · EV500 balancing board
- · Cell sampling leads / wiring set
- · Mounting hardware (Ø3.2 mm)
Need a different connector, lead length or silkscreen? Custom configurations are standard — send us your pack details.
Shipping & warranty
- · Free worldwide shipping — the price shown is delivered, carrier chosen for your address
- · 1-year warranty on all boards
- · EU, US and Brazil overseas warehouses for distributor orders
- · Air, sea and express routes available; CE / FCC / RoHS documents supplied with shipment
- · OEM and ODM: custom cell counts, branding and firmware configuration
