NEEY EV100 DC Contactor
EV100 · also sold as formerly EV4010 series
A compact 100 A DC contactor rated 12–1000 Vdc with up to 125 kW switching capacity. Epoxy sealed, non-polar coil, mounts in any position.
Price on request
Volume and sample pricing on request
Ordering: Ordering code: EV100 · N (non-polar output) · H (aux contact) · 01 (NC aux) · A/B/C (coil 12/24/48 V)
- Rated 12 – 1000 Vdc, 100 A contact switching capability
- Maximum switching capacity up to 125 kW
- Epoxy sealing — coil and contacts cannot oxidise or contaminate
- Non-polar coil; load output available polar or non-polar
- Small, light, arbitrary installation position

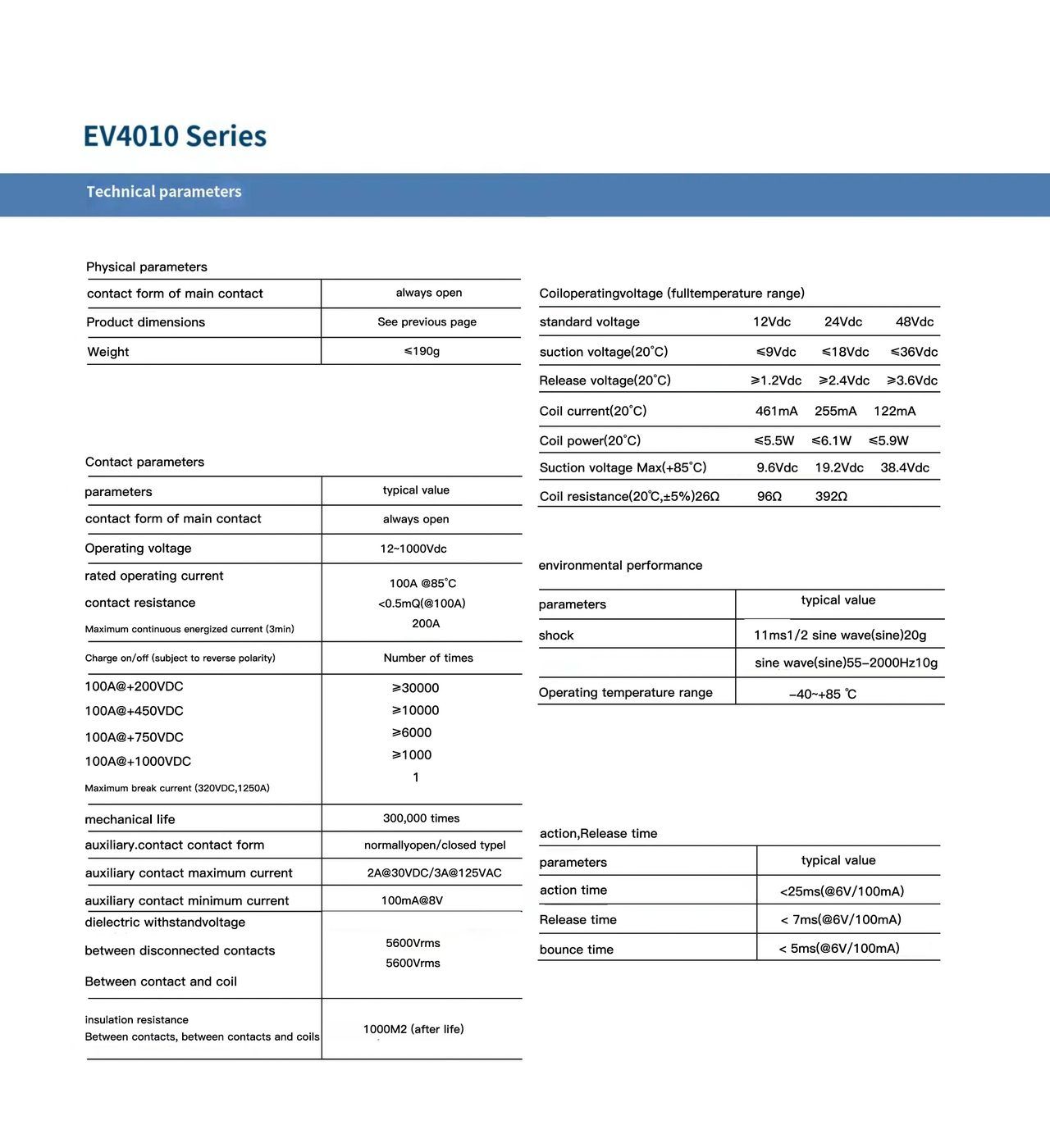

EV100 specifications
| Model | EV100 (EV4010) |
|---|---|
| Rated voltage | 12 V – 1000 Vdc |
| Contact switching current | 100 A |
| Maximum switching capacity | 125 kW |
| Sealing | Epoxy resin — coil and contacts protected from oxidation and contamination |
| Coil polarity | Non-polar coil; load output selectable polar or non-polar |
| Coil rated voltage | A = 12 V · B = 24 V · C = 48 V |
| Auxiliary contact | Optional (H suffix); 01 = normally closed, blank = normally open |
| Coil lead length | Standard 400 mm or 500 mm, customisable |
| Installation | Any position |
| Warranty | 1 year |
Included in the box
- · EV100 balancing board
- · Cell sampling leads / wiring set
- · Mounting hardware (Ø3.2 mm)
Need a different connector, lead length or silkscreen? Custom configurations are standard — send us your pack details.
Shipping & warranty
- · Free worldwide shipping — the price shown is delivered, carrier chosen for your address
- · 1-year warranty on all boards
- · EU, US and Brazil overseas warehouses for distributor orders
- · Air, sea and express routes available; CE / FCC / RoHS documents supplied with shipment
- · OEM and ODM: custom cell counts, branding and firmware configuration
